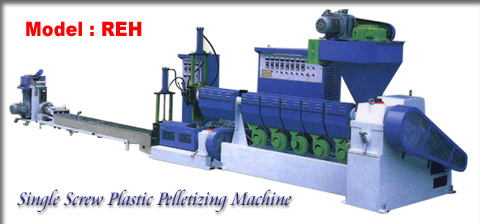

．Applications : For
mixing, adding, compounding & recycling of
ABS, PC, PP, PE, ACRYLIC.
|
|
|
|
1.
Specifications
:
|
| Model |
REH-50
|
REH-75
|
REH-100
|
REH-125
|
| Production |
60~80
KG / HR
|
180~250
KG / HR
|
350~450
KG / HR
|
600~700
KG / HR |
| Machine
Size
(CM) |
750x320x180 |
1200x350x190
|
1400x360x190
|
1650x400x200
|
| Machine
Weight |
2244 Kg |
4400
Kg
|
5100
Kg |
6300
Kg |
|
|
2.
Feeder
:
|
|
Screw
L/D |
Φ80
L/D 1:5
|
Φ100
L/D 1:5
|
Φ100
L/D 1:5
|
Φ100
L/D 1:5
|
|
Deceleration
Ratio / HP |
120:1
/ 1/4HP
|
60:1
/ 1/2HP
|
30:1
/ 1HP
|
30:1
/ 1HP |
|
Material
/ Max Feeding Quantity |
304#
/ 30~90Kg |
304#
/ 120~360Kg
|
304#
/ 240~720Kg
|
304#
/ 240~720Kg
|
|
Hopper
Capacity |
75Kg
|
100Kg
|
125Kg
|
150Kg |
|
Machine
Weight |
54Kg |
54Kg
|
54Kg
|
65Kg
|
|
Machine
Size (CM) |
84x78x85 |
92x92x80
|
92x92x80 |
92x92x80 |
|
|
3.
Extruder：
|
|
Screw
L/D |
Φ50
L/D32:1 |
Φ75
L/D37:1 |
Φ100
L/D37:1 |
Φ125
L/D37:1 |
|
Screw
Material
/ Processing Way |
SCM-4
High
Frequency / Hard Chrome，SACM-1 /
Nitrogen
Treatment or SCM-4 / Bialloy |
|
Cylinder
Material |
SACM-1 /
Nitrogen
Treatment or SCM-4 / Bialloy |
|
Main
HP |
20HP
VF Fine-Tuning
Control |
60HP
DC Fine-Tuning
Control |
125HP
DC Fine-Tuning
Control |
175HP
DC Fine-Tuning
Control |
|
Gear
Box |
Gear
Oil Filtration and Cooling / Gear
Material SCM-21 Hardness
56o~58o
HRC / Grinding
Grade JISE |
|
Heating
/ Cooling System |
12KW
/ 3Sets |
28KW
/ 4Sets |
42KW
/ 7Sets |
65KW
/ 7Sets |
|
Head
Type / Screw Dismantle |
Manual
/ Manual |
Hydraulic
/ Hydraulic |
Hydraulic
/ Hydraulic |
Hydraulic
/ Hydraulic |
|
Hydraulic
Press HP |
|
3HP |
3HP |
3HP |
|
Vacuum Machine HP /
De-gasification |
2HP
/ 1Hole |
2HP
/ 2Holes |
3HP
/ 2Holes |
3HP
/ 2Holes |
|
Pressure
Meter |
Pressure
Range 0~700，2-Stage
Warning,
Max./Min.
Memory Rate |
|
Machine
Weight |
1500Kg |
3500Kg |
4200Kg |
5000Kg |
|
Machine
Size (CM) |
210x120x150 |
450x150x160 |
580x160x160 |
700x180x170 |
|
|
4.
Cooling
Tank：
|
|
Tank
Size (CM) |
183x36x22
|
305x36x22
|
366x36x22
|
427x46x22
|
|
Tank
Material / Guiding |
304#
Stainless
Steel / 4Pieces
|
304#
Stainless
Steel / 4Pieces
|
304#
Stainless
Steel / 5Pieces
|
304#
Stainless
Steel / 5Pieces |
|
Moisture
Absorption Motor
|
1HP |
2HP
|
2HP
|
3HP
|
|
Machine
Weight |
90Kg
|
100Kg
|
110Kg
|
140Kg |
|
Machine
Size (CM)
|
183x36x22 |
305x36x22
|
366x36x22
|
427x46x22
|
|
|
5.
Cutting Machine：
|
|
HP |
5HP
VS Fine-Tuning
Control
|
10HP
VS Fine-Tuning
Control
|
10HP
VS Fine-Tuning
Control
|
15HP
VS / 20HP VS |
|
Rotary
Knife Material / No |
SKD-11
or Tungsten
Steel / 18 Pieces
|
SKD-11
or Tungsten
Steel / 24 Pieces
|
SKD-11
or Tungsten
Steel / 24 Pieces
|
SKD-11
or Tungsten
Steel / 28 Pieces |
|
Fixed
Knife Material
|
Tungsten
Steel / 1Piece |
Tungsten
Steel / 1Piece
|
Tungsten
Steel / 1Piece
|
Tungsten
Steel / 1Piece
|
|
Machine
Weight |
350Kg
|
500Kg
|
500Kg
|
800Kg |
|
Machine
Size (CM)
|
75x70x120 |
90x78x118
|
90x78x118
|
120x90x135
|
|
|
6.
Vibrating & Separator Filter：
|
|
HP
/ Capacity |
1/4HPx2
/ 300Kg
|
1/4HPx2
/ 500Kg
|
1/4HPx2
/ 700Kg
|
1/2HPx2
/ 1200Kg
|
|
Net
Dia. / Material |
Upper
Net Φ6.5mm，Down
Net Φ2mmx20L
/ 304# Stainless
Steel |
|
Receiving
Tank / HP |
300Kg
/ 2HP |
300Kg
/ 2HP
|
300Kg
/ 3HP
|
300Kg
/ 5HP
|
|
Machine
Weight |
250Kg
|
250Kg
|
250Kg
|
300Kg |
|
Machine
Size (CM) |
122x70x270 |
122x70x270
|
122x70x270
|
140x80x270 |
|
